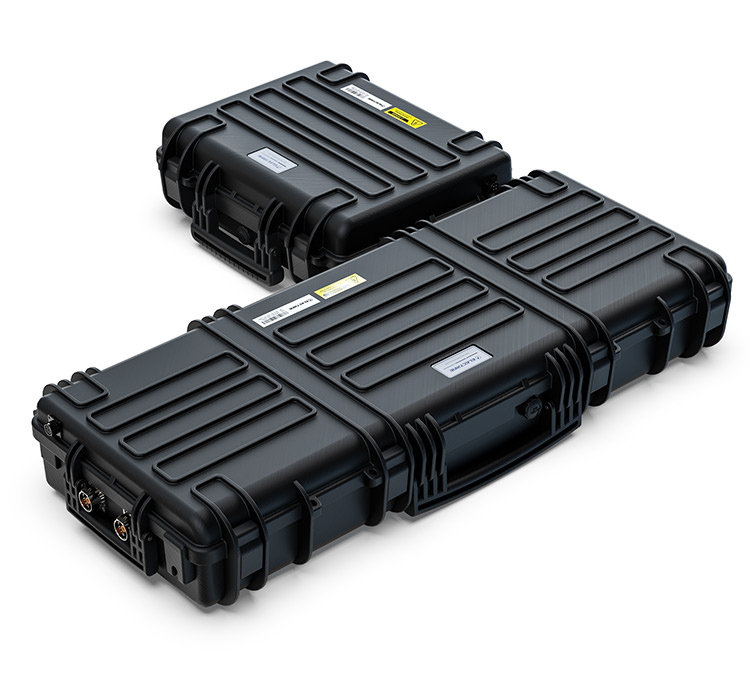

Battery Pack
ELECTRINE built own battery packs from the scratch. All battery packs are smoothly integrated with all ELECTRINE electric propulsion series, and that is why we put the amazing effort on developing our own battery packs. There is nothing to be compared to ELECTRINE battery pack.
“STRONG, SMOOTH, AND SAFE”
BATTERY SPECIFICATION
BF 86
- Nominal Voltage (Vdc)86.4 (43.2 x 2ea)
- Nominal Capacity (Ah)168 (84 x 2ea)
- Energy (kWh)14.52
- Operating Voltage (Vdc)67.2 - 98.4
- Charging Voltage (Vdc)98.4
- Charging CurrentStandard 84A (0.5 C-rate)
- Discharging Current / InstantMax 240A (1.43 C-rate)
- Communication / Master to PackCAN 2.0b
- Operation Temperature (Ambient)-10℃~ 60℃
- Configuration4 Module
- Size (mm)485 x 830 x 298
- Weight (Kg)80 (20 x 4)
- IP RatingIP67
BF 345
- Nominal Voltage (Vdc)345.6 (86.4 x 4ea)
- Nominal Capacity (Ah)98
- Energy (kWh)33.87
- Operating Voltage (Vdc)288 - 384
- Charging Voltage (Vdc)393.6
- Charging CurrentStandard 30A (0.3 C-rate)
- Discharging Current / InstantMax 280A (2.85 C-rate)
- Communication / Master to PackCAN 2.0b
- Operation Temperature (Ambient)-10℃~ 60℃
- Configuration4 Module
- Size (mm)1000 x 830 x 314
- Weight (Kg)188 (47 x 4)
- IP RatingIP67
